PA System

PA SYSTEM

Our PA System is suitable for a multitude of occasions from a Full Line Up Live Band, a DJ set up, a Disco, Karaoke, or to plug in your phone, laptop or tablet to play your own play lists.

Includes / Contains:

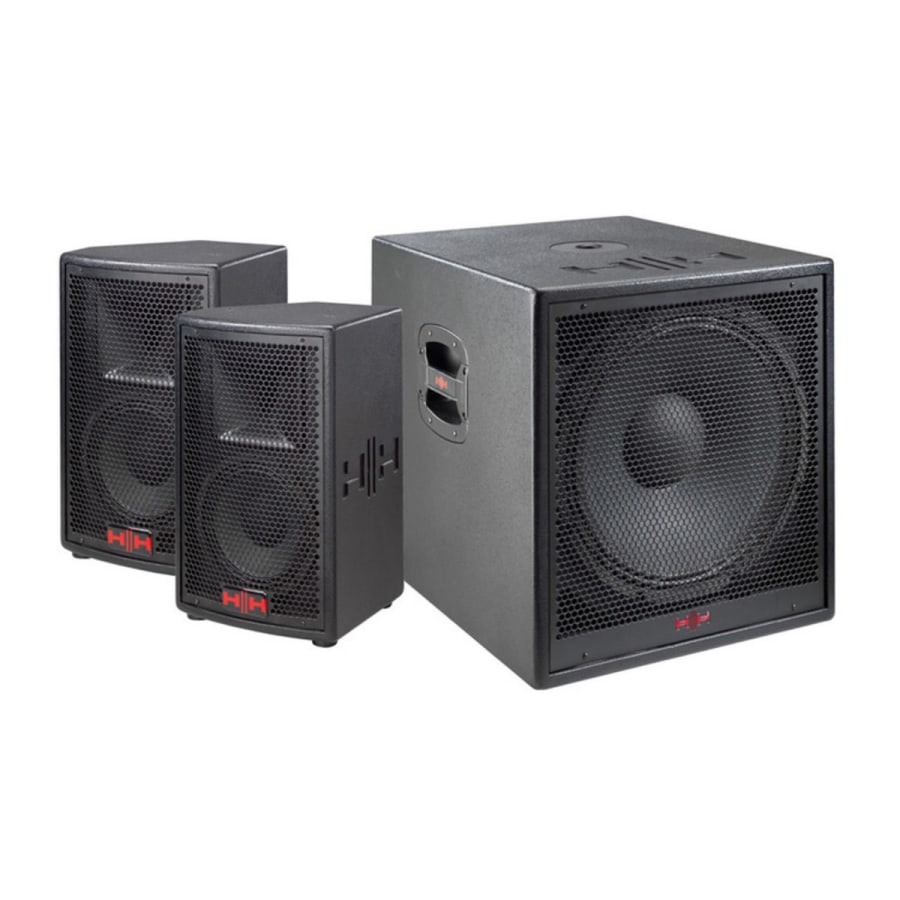

• 1 x Bass Speaker
• 2 x Satellite Speakers
• 1 x Bass Speaker Pole (for satellite speaker to sit on)
• 1 x Tripod Speaker

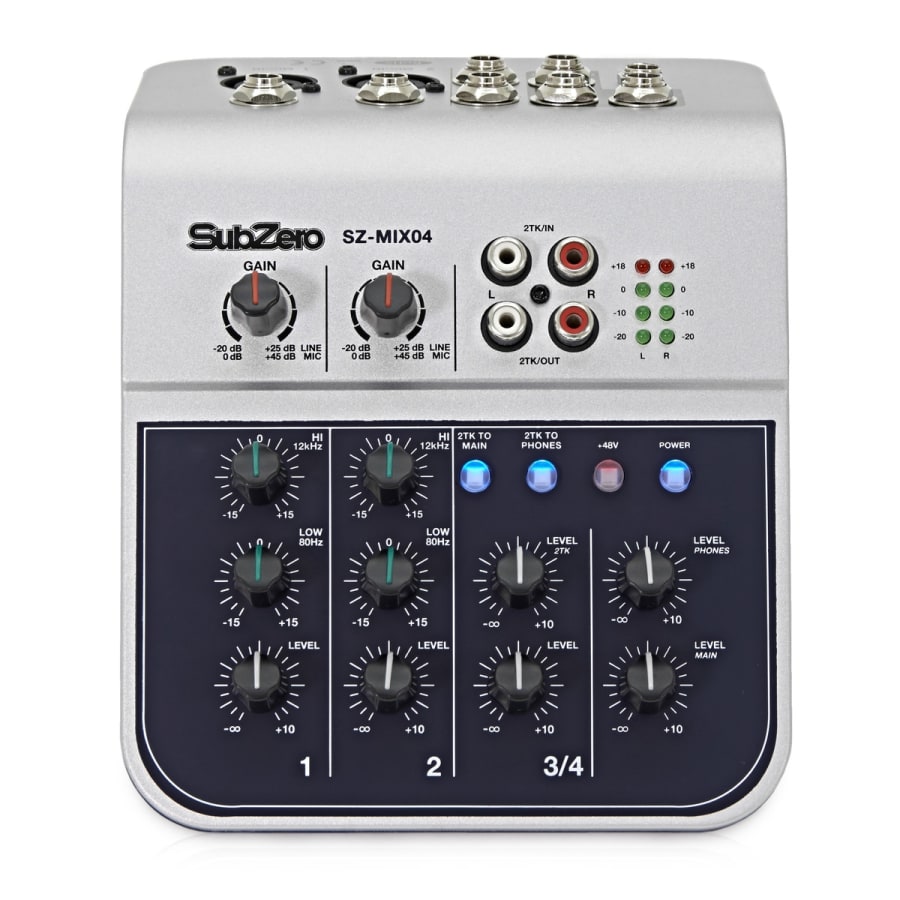

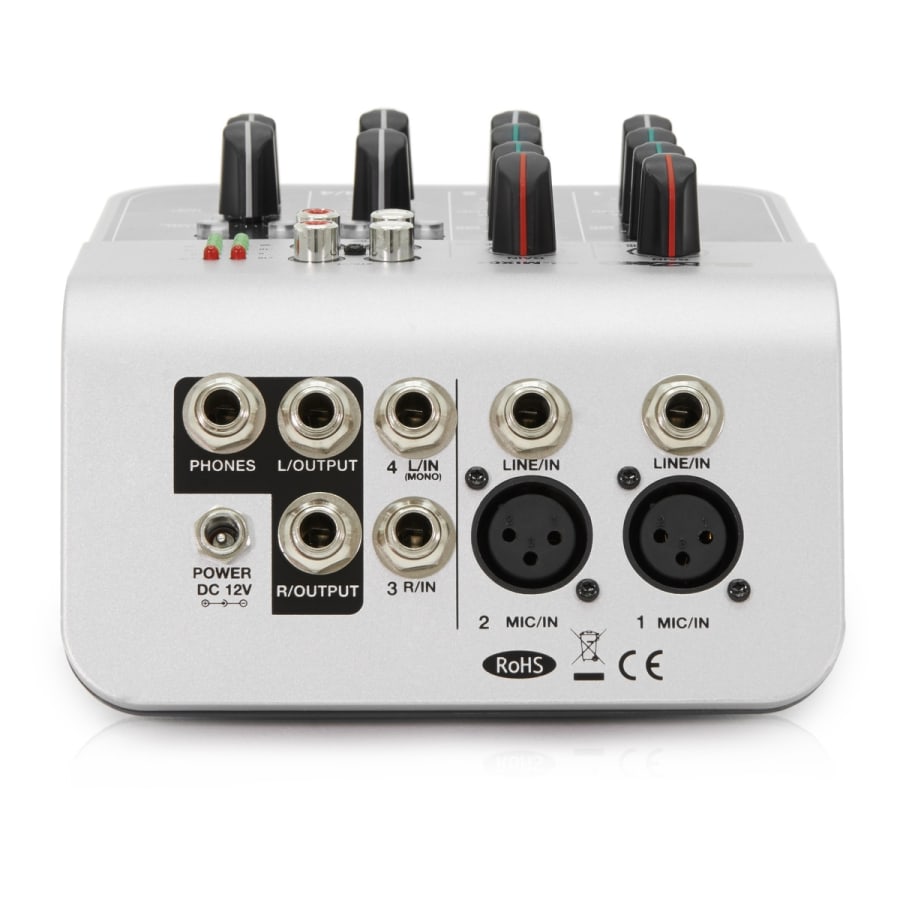

• 1 x 4 Channel Mixing Desk

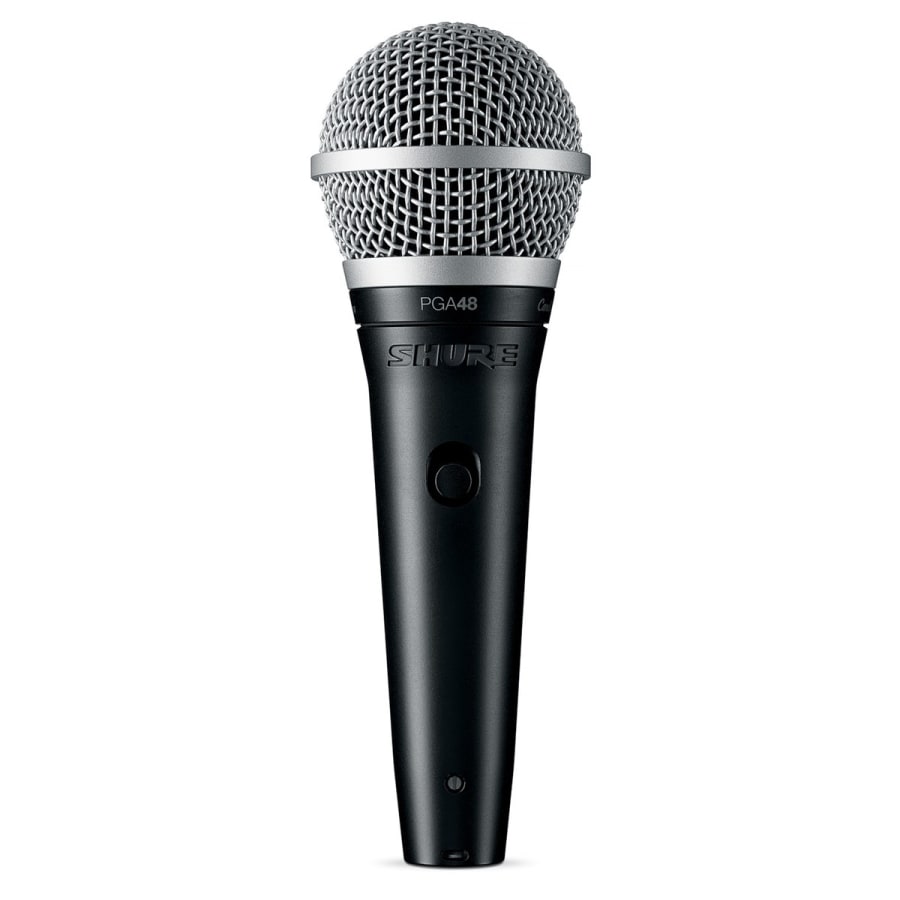

• 1 x Basic Microphone and Cable
• 1 x Input cable to connect tablet, laptop or phone etc

PA Features:

• System Type: Active Sub/Sat System with Compact Sub & Dual-Purpose Satellite Cabs
• Amplifier Type: Class D
• Max Power Consumption: 800W
• Power (Sub): 500W RMS (2000 Peak)
• Power (Sats): 2 x 150W RMS (2 x 600 Peak)
• Connections: Left & Right Jack/XLR Combi Input, XLR Link Output, Speakon Compatible Outputs for Satellites
• Input Impedance: Nominal 0dBu (+/-6dBu Gain)

PA Controls:

• Right, Sub and Left Levels
• Sub Phase
• Preshape Filter Switch
• Stereo/Mono Mode Switch
• Ground Lift Switch

• Protection: Comprehensive Protection Circuitry and Clip Free Limiting
• Cooling: Convection via Internal Heatsink
• Frequency Response: 45-18kHz (-3dB), 38-20kHz (-10dB)
• Sensitivity (1W@1m): 97dB
• Max SPL: 124dB
• Woofer: HH HD-558I Cast Chassis 15" Driver (Sub), HH HA-426D 8" Driver (Sat)
• Tweeter: HH GS-506N 1" Exit Compression Driver

Surfaces:

• Indoor: Indoors on Hard Surface
• Outdoor: Outdoors on Grass (weather permitting)
• Outdoor: Outdoors on Hard Surface (weather permitting)

Suitable for:

• Adults Parties: Yes
• Children's Parties: Yes

Video:

Instructions:

• Instructions - 4 Channel Mixing Desk
